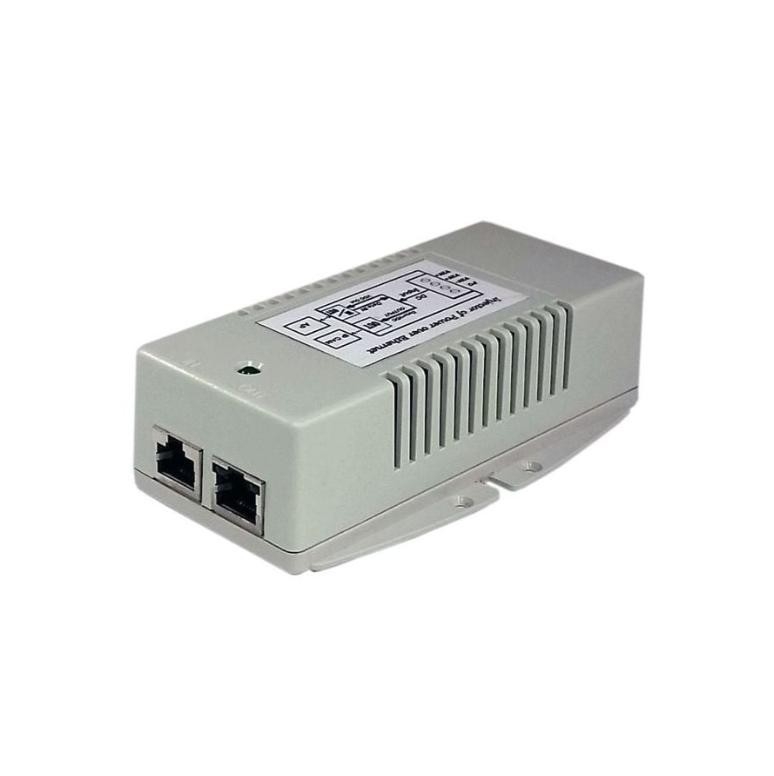

MODEL: TP-DC-1248GDX2-HP

The TP-DC-1248GDX2-HP delivers powerful performance as a high-power PoE injector with dual 802.3af/at-compatible outputs. It powers two devices simultaneously from a single injector, eliminating the need for a separate PoE switch by efficiently managing the data path between devices.

Operating on 12VDC, this model provides a combined output of up to 42W, ensuring reliable power delivery for a wide range of devices. Its robust design and high efficiency make it a preferred choice for various demanding applications.

Furthermore, the injector is designed for versatility. It includes two DC inputs, allowing seamless connections to both primary and backup power sources. This redundancy ensures continuous operation even if one power source fails, enhancing reliability. Additionally, it actively safeguards against short circuits, overloads, and surges caused by ESD or lightning. The built-in surge protection shields sensitive devices from damage, fully protecting all eight wires.

Moreover, by isolating input and output voltages, the injector prevents grounding or negative voltage issues, ensuring smooth and secure operation. This isolation enhances safety and provides flexibility in different installation environments, making the unit suitable for industrial and commercial applications.

In addition to its technical capabilities, the TP-DC-1248GDX2-HP is designed for ease of integration into existing systems. Its compact dimensions and durable construction make it easy to install and maintain. Whether used in telecommunications, remote monitoring systems, or other critical applications, this DC to DC converter offers peace of mind with its reliable performance.

Features

• DC to DC Converter
• Input Voltage 12VDC
• Dual 802.3af/at outputs
• High Power Output to 42W
• Surge Protected to 15kV
• Dual DC Inputs for Connecting 2 Power Sources
• 10/100/1000 Data Compatibility, Shielded Connectors
• Short Circuit, Over Current and Reverse/Over Voltage Protection
• Industrial Temperature Range, DIN Rail Mountable

Applications

• 12VDC Remote Power Systems running on batteries

• Power a Camera and Wireless using a single PoE Injector
• Power a Wireless AP and Backhaul using a single PoE injector
• PoE Lighting Applications
